| 브랜드 이름: | AE |
| 모델 번호: | AE85 |
| 모크: | 10 평방 미터 |
| 가격: | USD 90-110 Per Square Meter |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 한 달에 1000 평방 미터 |

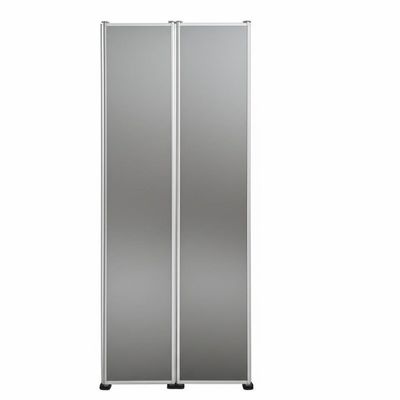

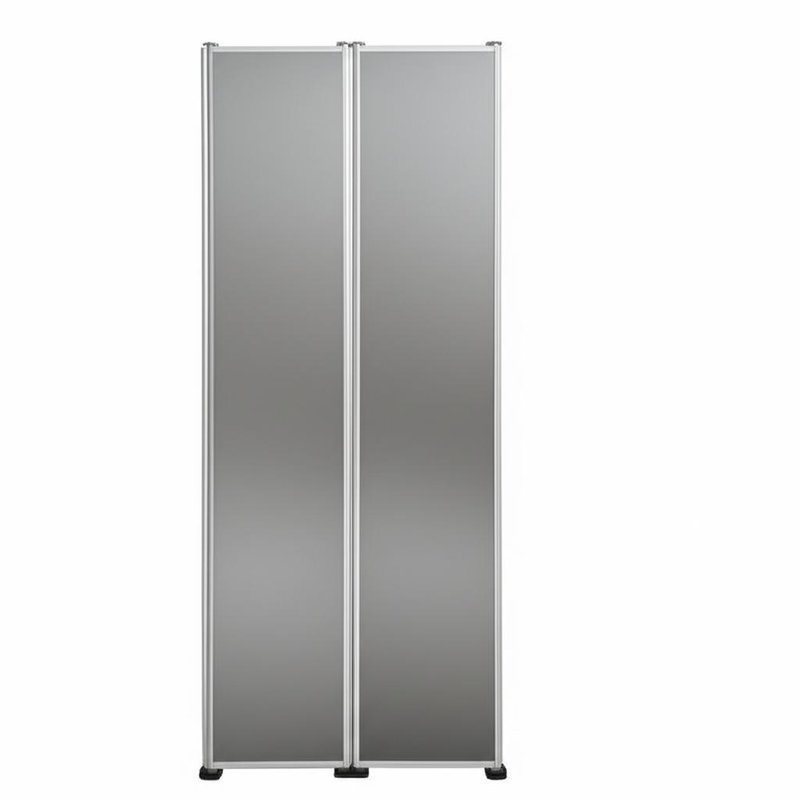

Engineered for Silence: The AE Partition Technical Advantage
At AE Partition, performance is in our DNA. We are an engineering-driven company dedicated to pushing the boundaries of acoustic isolation and mechanical durability. Our flagship movable wall partition is a testament to this philosophy, integrating state-of-the-art materials and precision mechanics to deliver quantifiable results for demanding environments worldwide.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS | ||||||
| Dimensions in mm* | Design | |||||
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56 Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m * Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department. ** Depending on the sound insulation/weight |
||||||
