| 브랜드 이름: | AE |
| 모델 번호: | AE100 |
| 모크: | 10 평방 미터 |
| 가격: | USD 80-108 Per Square Meter |
| 지불 조건: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| 공급 능력: | 한 달에 1000 평방 미터 |

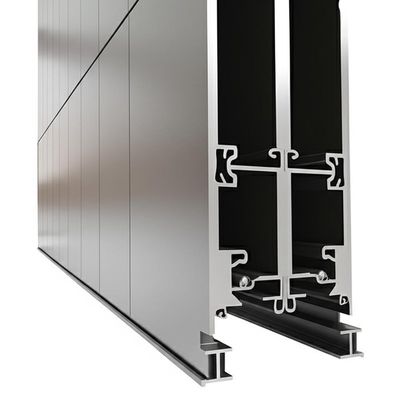

Our premium acoustic partition walls, also known as sliding folding partitions or room dividers, are globally recognized for their exceptional quality, design versatility, acoustic performance, and durability. Manufactured with precision, these partitions feature an aluminum frame and are available in various sizes, performance options, and decorative surfaces.
We produce and export banquet hall acoustic partition walls worldwide. Available in three different wall thicknesses, our partitions offer enhanced durability and the ability to achieve greater heights. Choose from a wide selection of acoustic and decorative surface designs to meet your specific requirements.
Engineered to minimize sound transmission and absorption, our partitions effectively reduce acoustic reflections while enhancing soundproofing. Ideal for temporarily dividing large spaces into smaller areas while maintaining excellent sound insulation.
Our banquet hall acoustic partition walls are part of a movable soundproof room partition system that forms a removable wall. Suspended from an overhead track system, these partitions ensure smooth operation and effective soundproofing. Perfect for hotels, banquet halls, and other large venues requiring both flexibility and performance.
| Series | Element Thickness (mm) | Element Width (min/max) | Clear Height (min/max) | Construction | Panel Fixing | Element Interconnection |
|---|---|---|---|---|---|---|
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile with magnetic strip and sealing lips |
Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Connection System: Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/widths indicated can only be confirmed following consultation with the Design Department.
