제품 세부 정보

집 상품

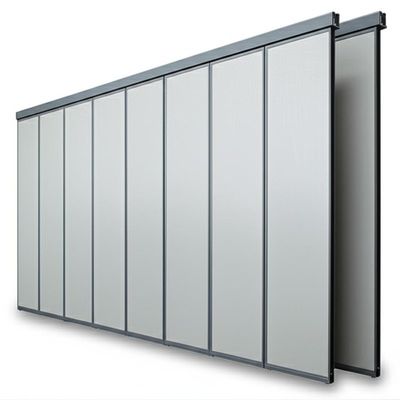

No Floor Track Acoustic Partition Wall with Q235 Steel Frame and Up to 18M Height for Conference Halls

브랜드 이름:	AE
모델 번호:	AE100
모크:	10 평방 미터
가격:	USD 80-108 Per Square Meter
지불 조건:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력:	한 달에 1000 평방 미터

자세한 정보

제품 설명

자세한 정보

원래 장소:

광동, 중국

인증:

ISO9001 SGS

제품 이름:

음향 격리벽

애플리케이션:

컨퍼런스 홀 파티션

마무리 옵션:

고객이 제공한 재료

키:

최대 18M

설계:

OEM & ODM

소리 절연:

최대 56dB

포장 세부 사항:

폼 층 및 합판 케이스 또는 스틸 팔레트가있는 하드 골판지

강조하다:

No Floor Track Acoustic Partition Wall

Q235 Steel Frame Partition Wall

18M Height Soundproof Partition Wall

제품 설명

Sound Proof Insulation Acoustic Partition Wall Operable For Conference Hall

Our high-performance acoustic partition walls provide superior sound insulation for conference halls and professional spaces, combining functionality with aesthetic flexibility.

Key Features

No Floor Track: Ceiling-mounted design eliminates tripping hazards and debris accumulation with optional integrated acoustic bottom seal.
Unlimited Customization: Choose from vinyl, fabric, carpet, veneer, high-pressure laminates, frescoes, or custom surfaces with MDF finish options.
Durable Construction: Robust aluminum frame available in heights from 2-15 meters with four thickness options for maximum rigidity.

Roller Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface design for smooth operation

Panel Features

Thickness options: 68mm, 89mm, 105mm
Multiple acoustical and decorative finishes available
6061-T6 profile with Q235 steel frame for enhanced durability
Top & bottom jack lifting mechanism with 800N power
Magnetic seal with 40N/m attraction in concave & convex profile

Specifications

Series	Element Thickness (mm)	Element Width (mm)	Clear Height (mm)	Construction
AE65	68	600-1,250	2,000-4,500	Aluminium-steel
AE85	89	600-1,250	2,000-5,500	Aluminium-steel
AE100	105	600-1,250	2,000-18,000	Aluminium-steel

Technology: Weighted sound reduction value (Rw) 52/56 dB (GB/T19889.3-2005)
Connection System: Convex-concave profile with magnetic strip (40 N/m attraction)
* Larger widths available upon request. Final dimensions subject to Design Department approval.
