음향 격리벽
Created with Pixso.

Fireproof Wooden Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Co-Working Spaces

Fireproof Wooden Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Co-Working Spaces

브랜드 이름: AE
모델 번호: AE100
모크: 10 평방 미터
가격: USD90-135Per Square Meter
지불 조건: L/C, D/A, D/P, T/T, Western Union, MoneyGram
공급 능력: 한 달에 1000 평방 미터
자세한 정보
원래 장소:
광동, 중국
인증:
ISO9001 SGS
제품:
음향 격리벽
규정 준수:
회의실, 사무실 건물
패널 자료:
고압 적층 보드
치수:
맞춤형(높이: 최대 18M, 패널당 너비: 최대 1.2M)
설계:
OEM & ODM
소리 절연:
최대 56dB
포장 세부 사항:
폼 층 및 합판 케이스 또는 스틸 팔레트가있는 하드 골판지
강조하다:

6061-T6 Profile Acoustic Partition Wall

,

Q235 Steel Frame Movable Partition Wall

,

304 Stainless Steel Roller Folding Partition Wall

제품 설명
Fireproof / Movable Wooden Acoustic Folding Walls For Co-Working Spaces
Fireproof and Movable Wooden Acoustic Partition Wall for Co-working Spaces
Our Wooden Acoustic Folding Movable Partition is designed with fireproof materials, ensuring safety in your commercial space. These operable dividers also offer excellent sound control, making them a practical and protective choice.
AE Partition offers intelligent room management solutions to customers across the globe. We don't just install movable partition wall systems; we meticulously plan and design them to meet the specific needs of each space. Our dedication to quality extends to our post-installation services, which are designed to maintain the durability and functionality of our products over time.
Our Strengths
  • Effective OEM&ODM service
  • Your inquiry related to our products or prices will be responded to within 24 hours
  • Product specifications and value-engineered alternatives
  • Provide submittal drawings
  • German Partition Technology Global Professional Space Solutions
  • Highly competitive prices
  • Good quality control
  • Smooth communication
  • State-of-the-art technology products
Roller Options & Features
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Unique and patented wheel surface and shape make the whole movable partition easy to use
Panel Options & Features
  • Thickness: 68mm & 89mm & 105mm
  • Wide variety of acoustical and decorative finishes available
  • 6061-T6 profile and inside Q235 steel frame for superior durability
  • Top & bottom jack lifting mechanism seal are with power of 800N
  • Magnetic seal in concave & convex profile has magnetic attraction of 40N/m
Specifications
Series Element thickness Element width* (min./max.) Clear height* (min./max.) Framed construction Panel fixing Element interconnection/design of the vertical profiles
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

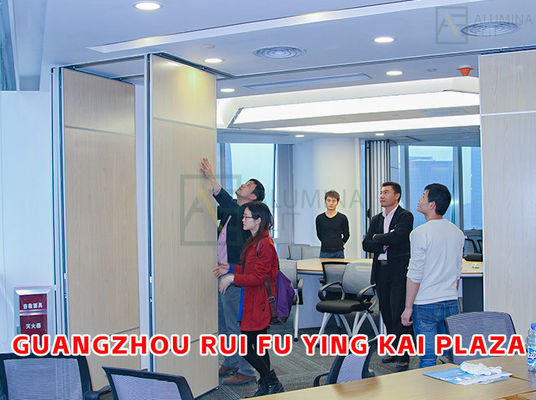

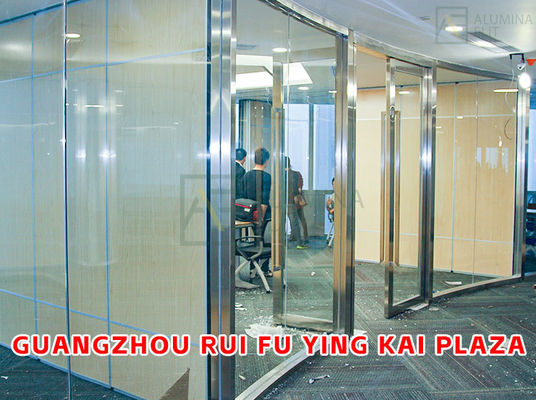

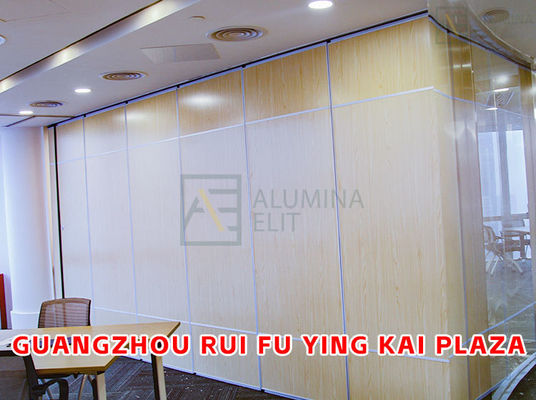

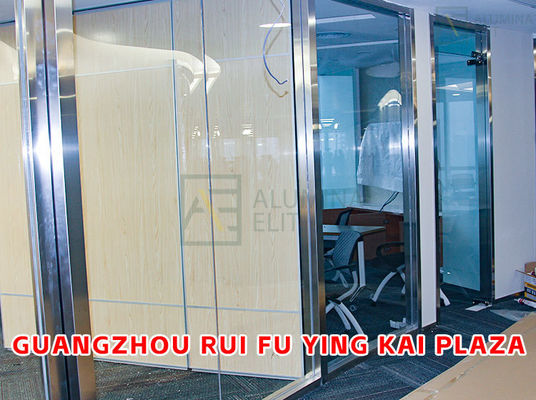

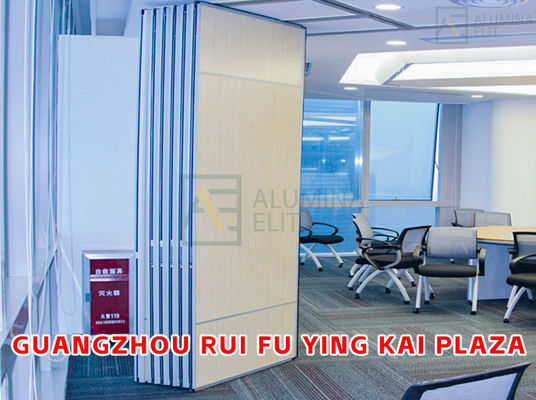

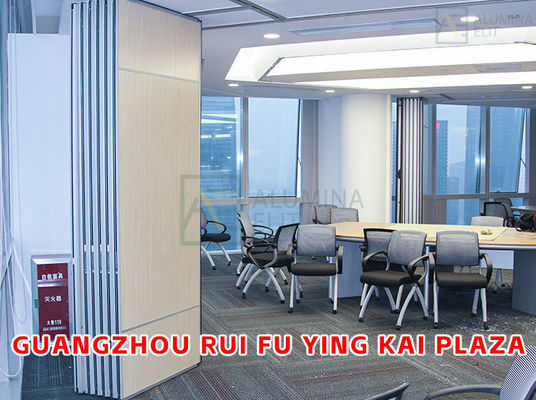

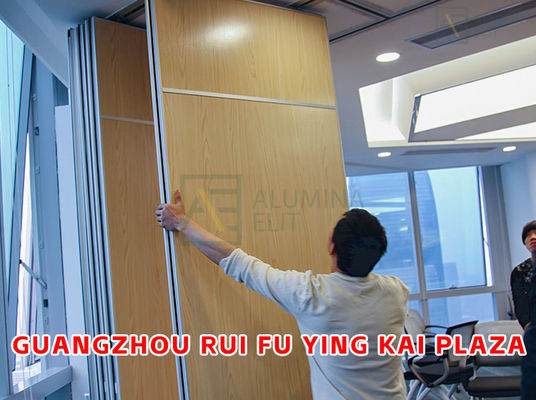

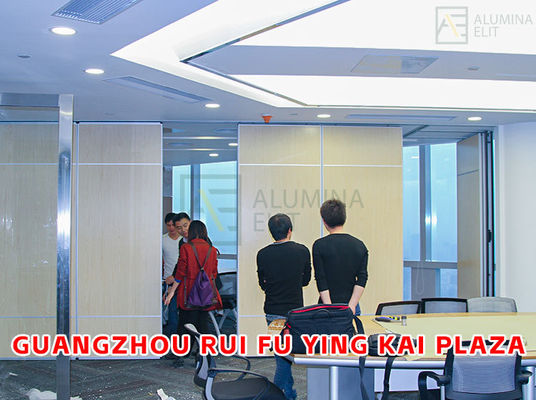

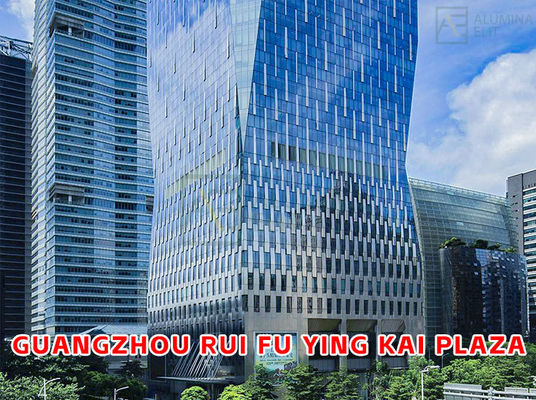

Project Examples
Fireproof Wooden Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Co-Working Spaces 0 Fireproof Wooden Acoustic Partition Wall with 6061-T6 Profile and Q235 Steel Frame for Co-Working Spaces 1
