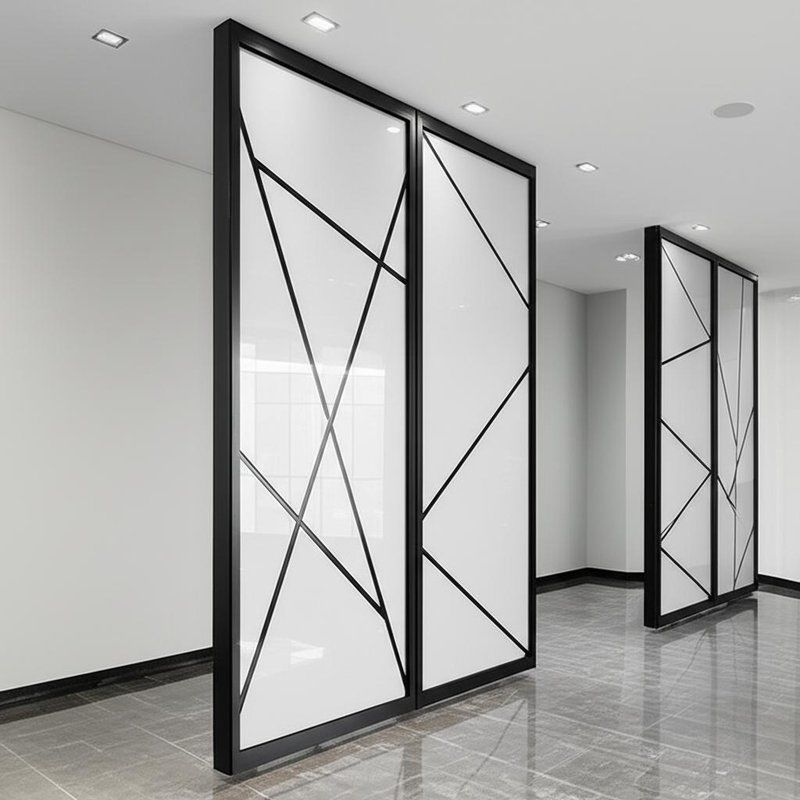

Sliding Acoustic Partition Wall with Glass Finish Customizable Dimensions and OEM & ODM Design

Sliding Acoustic Partition Wall with Glass Finish Customizable Dimensions and OEM & ODM Design

브랜드 이름: AE
모델 번호: AE100
모크: 10 평방 미터
가격: USD90-135Per Square Meter
지불 조건: L/C,D/A,D/P,T/T,웨스턴 유니온,MoneyGram
공급 능력: 한 달에 1000 평방 미터
자세한 정보
원래 장소:
중국 광둥
인증:
ISO9001 SGS
제품:
음향 칸막이벽 시스템
어플리케이션:
병원, 사무실 건물
기본 보드:
고객이 제공한 재료
치수:
맞춤형(높이: 최대 18M, 패널당 너비: 최대 1.2M)
설계:
OEM 및 ODM
방음:
최대 56dB
포장 세부 사항:
폼 층 및 합판 케이스 또는 스틸 팔레트가있는 하드 골판지
강조하다:

Glass Finish Sliding Acoustic Partition Wall

,

Customizable Dimensions Movable Partition Wall

,

OEM & ODM Design Operable Partition Wall

제품 설명
Sliding Acoustic Partition Wall System 68mm 89mm 105mm Thickness With Glass Finish
Sliding Acoustic Partition Wall Systems with Glass Finish for Global Solutions

Maximize your room's potential with our modular movable partitions. Designed for easy assembly and disassembly, these folding partitions are perfect for temporary or permanent space solutions.

Our manually operated partition system is composed of several panels that are easy to move and position by hand. No special tools are required—simply use the operating handle to lock the panels and activate the mechanical seals for effective acoustic insulation.

Key Features and Services
  • German Partition Technology Global Professional Space Solutions
  • Site inspections and project experience with heavy customers
  • Highly competitive prices with fast response to construction issues
  • Controlled delivery times for decent orders
  • Comprehensive OEM & ODM services tailored to specific needs
  • Product specifications and value-engineered alternatives
  • Submittal drawings provided
Roller Options & Features
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Patented wheel surface and shape for easy operation
Panel Options & Features
  • Available thicknesses: 68mm, 89mm, 105mm
  • Wide variety of acoustical and decorative finishes
  • 6061-T6 profile with Q235 steel frame for superior durability
  • Top & bottom jack lifting mechanism seal with 800N power
  • Magnetic seal in concave & convex profile with 40N/m attraction
Technical Specifications
Series Element thickness (mm) Element width* (min/max) Clear height* (min/max) Framed construction Panel fixing Element interconnection
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
